Bronco V-Plow 160-E Electric

Bronco V-Plow 160-E

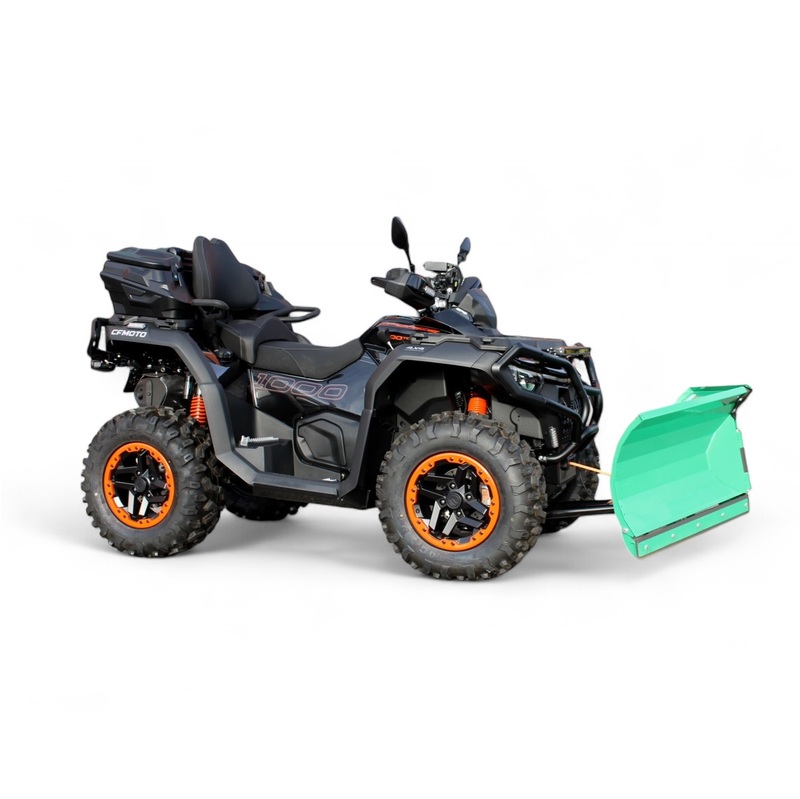

A professional Heavy Duty Made-in-Sweden snow plow for ATV/ UTV

Bump absorbing wear bars with torsion element. Rubber equipped wear bar as standard for a smooth and silent plowing on gravel, cobblestone, and other sensitive surfaces.

Adjustable skid shoes.

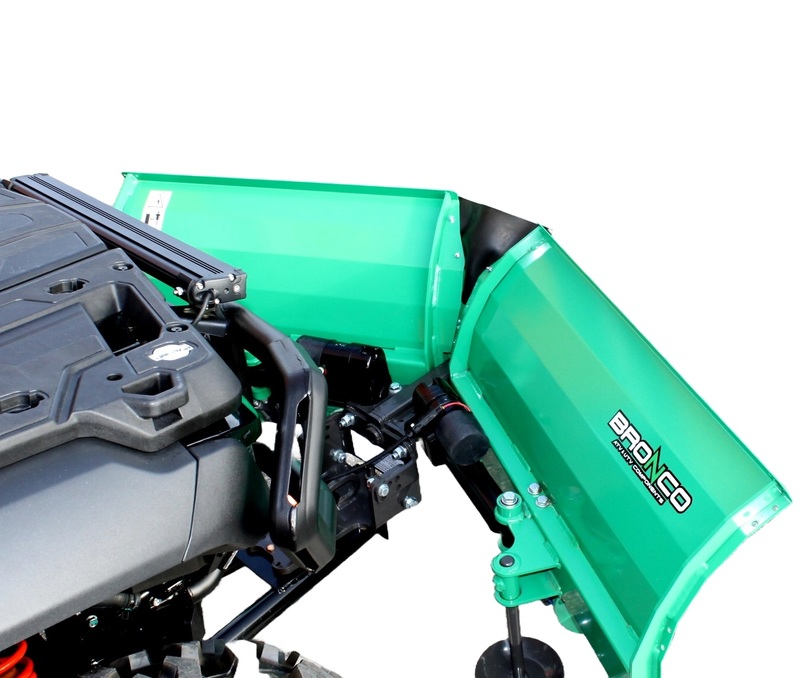

The blades are angled with the help of two powerful 12V, IP65 rated actuators from the mining industry. Each actuator moves approx. 225kg when in motion and holds its position under a 1,1 ton loading.

Dimensions V-plow:
Straight position: 160cm
Fully angled: 146cm
Width V-shape: 154cm
”Bucket” position: 150cm
Height: 52cm

Specifications actuator:
Max dynamic load: 2250 N
Max static load: 11350 N
Speed, unloaded: 30 mm/s
Speed, max load: 18 mm/s
Classification: IP 65
12 VDC, 28 A
Overload Clutch.

Paint code: RAL6024

For a complete V-plow kit you need:
75-804800 Bronco V-Plow 160-E
75-804801 Bronco Adaptor plate

You will also need a Kimpex Click N Go 2/LT or Bronco push frame and a model specific mount plate.

See  ATV catalog or the web for your part number.
